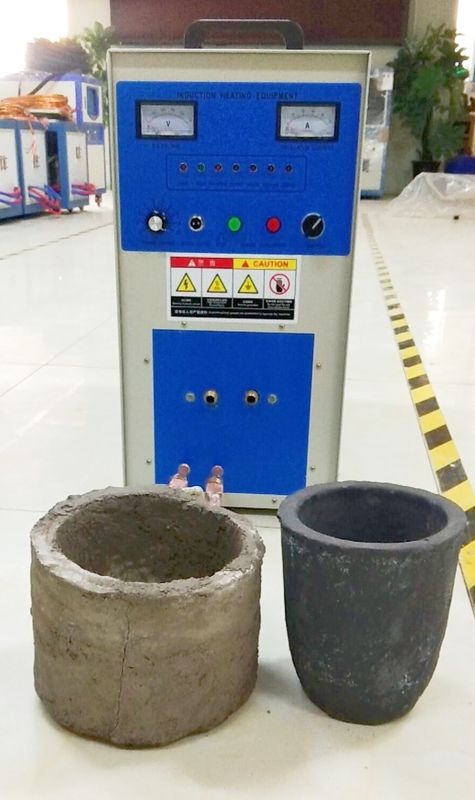

1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace
  • 1kg 3kg 5kg Copper Scraps Melting Furnace

1kg 3kg 5kg Copper Scraps Melting Furnace

Lugar de origen Porcelana
Nombre de la marca Lanshuo
Certificación CE ISO EAC
Número de modelo El LSW-30
Detalles del producto
Tipo:
Horno de fusión por inducción
Fuente de energía:
Electricidad
Potencia nominal:
30kw
Uso:
fundición de metales
Solicitud:
Fusión de hierro, acero, cobre, oro, plata y aluminio
Capacidad de fusión:
1-5kg
Voltaje de entrada:
3 fases 380v 50/60 Hz
Frecuencia de oscilación:
25 a 40 Khz
Resaltar:

small copper melting furnace

,

3kg induction melting furnace

,

5kg copper scraps furnace

Condiciones de pago y envío
Cantidad de orden mínima
1 juego
Precio
USD 1200-2000 / set
Detalles de empaquetado
caja de madera contrachapada, 1250*350*680 mm
Tiempo de entrega
1-3 días hábiles
Condiciones de pago
LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente
3000 juegos/juegos por año
Descripción del producto

30kw Portable Electric Furnace Induction Melting Furnace

1. Brief Introduction of Induction Melting Furnace:

LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.



2. Technical Parameters of LSW-30 Induction Melting Furnace:

Modle LSW-30
Melting capacity 1-5kg copper gold silver iron steel zinc etc.
Rated Power 30KW
Input voltage 3-phase 380v, 50/60hz
Oscillation frequency 25-40Khz
Current(max) 50A
continuous load rate 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Gross weight 60kg
Gross dimension 1250*350*680mm



3. Main Features of induction heating Melting machine:

(1) High efficiency: Induction power, heat transfers to the crucible in a short time.

(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.

(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.

(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.

(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.

(6) Easy to carry and install: Portable, saving much more room.



1kg 3kg 5kg Copper Scraps Melting Furnace 0

1kg 3kg 5kg Copper Scraps Melting Furnace 1

4. Certificates

1kg 3kg 5kg Copper Scraps Melting Furnace 2

1kg 3kg 5kg Copper Scraps Melting Furnace 3
