Induction Smelting Furnace for Melting Metal Copper Melting Machine
Product Description:
Induction Melting Furnace - High Efficiency, Energy Saving and Reliable
The Induction Melting Furnace is a powerful and efficient furnace designed for melting a variety of metals including Cooper, Aluminum, Iron, Steel, Bronze and Brass. It is an essential tool for foundries and metal processing plants, providing high temperature melting capabilities for various applications.
The furnace features an induction heating system, which uses electromagnetic induction to generate heat within the melting crucible. This results in faster melting times and higher energy efficiency compared to traditional furnaces. With a duty cycle of 100%, the Induction Melting Furnace can operate continuously without any breaks, making it ideal for large-scale production.
Thanks to long-term practical test, the MF constant power (energy saving) melting furnace has been widely praised by customers.
Furthermore, our machine has made some improvements based on its original type, and its property becomes more and more excellent.
Through long-term practical test, constant power (energy-saving) MF melting furnace has been widely praised among customers. What’s more, our melting furnace has made some improvements based on its original type, and its property is becoming more excellent.
Features of KGPS induction melting furnace:
1. High melting rate.
2. Good-quality molten steel, high casting product yield.
3. High power factor. During the machine’s operation, the power factor can reach over 97%.
4. No harm to the power gird.
5. Low power consumption, saving over 10% energy.
6. High start-up success rate. Under any load, the start-up success rate is 100%.
7. The main control panel adopts plug-in connector, easier maintenance.
8. Simple to install. Installation can be done by unprofessional workers very easily.
9. The melting furnace adopts series thyristor, making the SCR damage rate to a minimum.

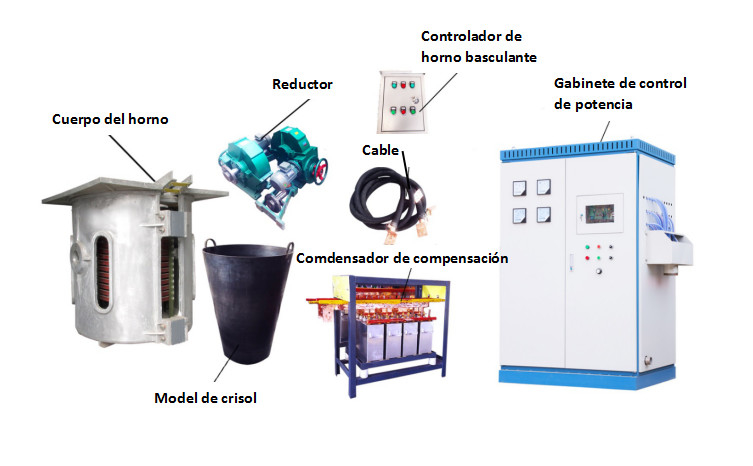

Main technical parameters of KGPS-250 induction melting furnace:
| Model |
KGPS-250 |
| Rated power |
250kw |
| Rated capacity |
0.35T iron steel copper |
| Matching transformer’s capacity |
315KVA |
| Voltage |
380V, 50/60HZ |
| Medium frequency |
1-2KHZ |
| Medium voltage |
750V |
| DC voltage |
500V |
| DC current |
500A |
| Rated temperature |
1800℃ |
| Melting time |
about 45 minutes |
| Closed loop water cooling tower (circulating water) |
LSN-40B |
| Power supply cabinet dimension |
1580*950*2000mm |
| Furnace dimension |
1350*980*860mm |
| Power supply cabinet weight |
880kg |
| Furnace weight |
450kg |
Packing and Shipping:
1. Pack the induction melting furnace with wrapping film for waterproof;
2. Put it into a standard exporting plywood or wooden case;
3. Put foam around it for shockproof;
4. Fasten the case with nails.
Service:
As a manufacturer with 15 years' R&D experience in China, we would like to offer any support you need as follows:
Pre-sale service:
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
After-sale service:
1. Technical support, or alternative accessories if necessary.
2. Freely guide installation, commissioning and test run.
3. One year's warranty. Once there is a trouble within one year, professional engineers and sales will be promptly
